365-1167 / 365-1287 / 365-1290
365-1313 / 365-1322 / 365-1324
365-1325 / 365-1326 / 365-1330
365-1331 / 365-1332 / 365-1333

365-1335 / 365-1337
365-1340 / 365-1342

20-inch Premium Color Monitor

365-1167 / 365-1287 / 365-1290
365-1313 / 365-1322 / 365-1324
365-1325 / 365-1326 / 365-1330
365-1331 / 365-1332 / 365-1333



Part Numbers
Option
MFG Part #
Description
n/a 365-1167 [F] 20" P4 Premium Color Monitor, DB13W3, FCC-B/VCCI-2, MPR 1990:10 with non-removable 1.2M Video Cable

n/a

 365-1287 20" P4 Premium Color Monitor (logoless)

n/a

 365-1290 20" P4 Premium Color Monitor (Korean)
n/a 365-1313 20" P4 Premium Color Monitor, DB13W3, FCC-B/VCCI-2, MPR 1990:10 with non-removable 1.2M Video Cable (logoless)
n/a 365-1322 20" P4 Premium Color Monitor, DB13W3, Energy Star, with non-removable 1.2M Video Cable (Korean)
n/a 365-1324 [F] 20" P4 Premium Color Monitor, DB13W3, Energy Star, with non-removable 1.2M Video Cable
n/a 365-1325 20" P4 Premium Color Monitor, DB13W3, Energy Star, with non-removable 1.2M Video Cable (Southern Hemisphere)
n/a 365-1326 20" P4 Premium Color Monitor, DB13W3, Energy Star, with non-removable 1.2M Video Cable (logoless)
n/a 365-1330 [F] 20" P4 Premium Color Monitor, DB13W3, FCC-B/VCCI-2, MPR 1990:10 with non-removable 1.2M Video Cable
n/a 365-1331 20" P4 Premium Color Monitor (logoless)
n/a 365-1332 20" P4 Premium Color Monitor (Southern Hemisphere)
n/a 365-1333 20" P4 Premium Color Monitor (Korean)
Supported Resolutions / Timings
Pixel Resolution
Horizontal Frequency
Vertical Frequency
Pixel Frequency
1076 × 824
71.7 kHz
76 Hz
108 MHz *
1152 × 900
61.8 kHz
66 Hz
94.5 MHz
1152 × 900
71.8 kHz
76 Hz
108 MHz
1196 × 938
81.1 kHz
76 Hz
135 MHz **
1280 × 1024
71.8 kHz
67 Hz
118 MHz
1280 × 1024
81.1 kHz
76 Hz
135 MHz
* - The 1152 × 900 @ 76 Overscan Mode user area is 1076 × 824.
** - The 1280 × 1024 @ 135 Overscan Mode user area is 1196 × 938.
Quick Facts

Code Name

 Corona
Model GDM-20D10 (Sony)
Serial Number Location Back
FCS Date n/a
EOL n/a
EOSL n/a
Warranty n/a

Specifications

Actual Screen Size n/a
Image Size 350 mm Horizontal, 270 mm Vertical, 442 mm Diagonal (13.77 in H, 10.62 in V, 17.4 in D)
Dot Pitch .31 mm (.012 in)
Sync Input n/a
Horizontal Scan 60khz - 85khz
Vertical Scan n/a
Power Consumption

Operating Voltage

Input Current

Input Power

BTU/hr
115 VAC
n/a
n/a
n/a
n/a
230 VAC
n/a
n/a
n/a
n/a
Energy Star Compliant 365-1167, 365-1287, 365-1290, 365-1313 - No
365-1322, 365-1324, 365-1325, 365-1326, 365-1330, 365-1331, 365-1332, 365-1333 - Yes
Dimensions (w × h × d) n/a
Weight n/a
Environmental

Operating

Storage

Shipping
Temperature: n/a
Humidity: n/a
Altitude: n/a		 Temperature: n/a
Humidity: n/a
 Temperature: n/a
Humidity: n/a
Altitude: n/a
Reliability n/a
Notes This monitor is not PC compatible. Remote control part number 370-1576 [F] or 370-1705 (logoless). Battery for remote control CR2025 3V has no Sun part number.

Monitor Cables


Input Connector

DB13W3 Connector
Pin Signal
1
 RS232 clock input
2
 RS232 Data in
3
 Sense 2
4
 Sgnd
5
 Csync
6
 RS232 data out
7
 Not used
8
 Sense 1
9
 Sense 0
10
 Cgnd
A1
 Red
A2
 Green
A3
 Blue
S0 and S1 are grounded.
The Sense Code is 4.
Pin-7 is not used.

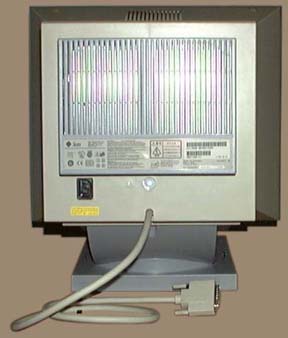

20-inch Premium Color Monitor

365-1335 / 365-1337 / 365-1340 / 365-1342



Part Numbers
Option
MFG Part #
Description
X267A 365-1335 [F] 20" N2 Premium Color Monitor, DB13W3, FCC-B, Energy Star with non-removable 1.2M Video Cable
@X267A-LOGOLESS 365-1337 20" N2 Premium Color Monitor, DB13W3, FCC-B, Energy Star with non-removable 1.2M Video Cable (logoless)
X267A-STH 365-1340 20" N2 Premium Color Monitor, DB13W3, FCC-B, Energy Star with non-removable 1.2M Video Cable (Southern Hemisphere)
n/a 365-1342 20" N2 Premium Color Monitor, DB13W3, FCC-B, Energy Star with non-removable 1.2M Video Cable (Korean)
Supported Resolutions / Timings
Pixel Resolution
Horizontal Frequency
Vertical Frequency
Pixel Frequency
960 × 680
81.13 kHz
113.37 Hz
101 MHz
1152 × 900
61.84 kHz
66 Hz
94.5 MHz
1152 × 900
71.81 kHz
76.14 Hz
108 MHz
1280 × 1024
71.67 kHz
66.67 Hz
118 MHz
1280 × 1024
81.13 kHz
76.11 Hz
135 MHz
Quick Facts

Code Name

 Sunflower
Model GDM20E20 (Sony)
Serial Number Location Back
FCS Date n/a
EOL March, 2001
EOSL March, 2006
Warranty n/a

Specifications

Actual Screen Size 464.82 mm (18.3 in)
Image Size 350 mm Horizontal, 270 mm Vertical, 442 mm Diagonal (13.77 in H, 10.62 in V, 17.40 in D)
Dot Pitch .31 mm (.012 in)
Sync Input Combined/Separate
Horizontal Scan 30khz - 82khz
Vertical Scan 48hz - 160hz
Power Consumption

Operating Voltage

Input Current

Input Power

BTU/hr
115 VAC
90 - 132
1.7 A (max)
173W (typical), 224W (max)
n/a
230 VAC
180 - 264
1.2 A (max)
230W (typical), 317W (max)
n/a
Energy Star Compliant Yes
Dimensions (w × h × d) 475 mm × 487 mm × 506 mm (18.70 in × 19.17 in × 19.92 in)
Weight 31 kg (68.34 lbs)
Environmental

Operating

Storage

Shipping
Temperature: 10º to 35º C (50º to 95º F)
Humidity: 10% to 90% non-condensing
Altitude: Sea level to 3048m(10,000ft)		 Temperature: 0º to 60º C (32º to 140º F)
Humidity: 5% to 90% non-condensing
 Temperature: -40º to 35º C (-40º to 95º F)
Humidity: 5% to 95% non-condensing
Altitude: Sea level to 10675m(35,000ft)
Reliability 110K Hours MTBF
Notes This monitor is PC compatible.

Monitor Cables


Input Connector

DB13W3 Connector
Pin Signal
1
 DDC clock
2
 Not used
3
 Sense 2
4
 Sgnd
5
 Csync
6
 SDA serial data I/O
7
 Vsync
8
 Sense 1
9
 Sense 0
10
 Cgnd
A1
 Red
A2
 Green
A3
 Blue
S0 and S1 are grounded. The Sense Code is 4.
Pin-5 is Hsync if Vsync is present on Pin-7.
