Ultra 30 (A16)
Netra t 1100

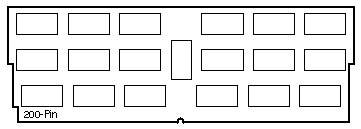

Options 7001 / 7002 / 7003 / 7004 / 7043

501-2479 501-2480 501-2622 501-3136 501-5691
16MB 5V ECC
60ns DIMM
Option 7001
64MB 5V ECC
60ns DIMM
Option 7003
32MB 5V ECC
60ns DIMM
Option 7002
128MB 5V ECC
60ns DIMM
Option 7004
64MB 5V ECC
60ns DIMM
Option 7043

Memory Map

SOCKET QUAD PAIR PAIR ADDRESS QUAD ADDRESS
U1004
U0904
U0804
U0704
Quad 3
Quad 3
Quad 3
Quad 3
Pair 1
Pair 1
Pair 0
Pair 0
70000000 - 7fffffff
70000000 - 7fffffff
60000000 - 6fffffff
60000000 - 6fffffff
60000000 - 7fffffff
60000000 - 7fffffff
60000000 - 7fffffff
60000000 - 7fffffff
U1003
U0903
U0803
U0703
Quad 2
Quad 2
Quad 2
Quad 2
Pair 1
Pair 1
Pair 0
Pair 0
50000000 - 5fffffff
50000000 - 5fffffff
40000000 - 4fffffff
40000000 - 4fffffff
40000000 - 5fffffff
40000000 - 5fffffff
40000000 - 5fffffff
40000000 - 5fffffff
U1002
U0902
U0802
U0702
Quad 1
Quad 1
Quad 1
Quad 1
Pair 1
Pair 1
Pair 0
Pair 0
30000000 - 3fffffff
30000000 - 3fffffff
20000000 - 2fffffff
20000000 - 2fffffff
20000000 - 3fffffff
20000000 - 3fffffff
20000000 - 3fffffff
20000000 - 3fffffff
U1001
U0901
U0801
U0701
Quad 0
Quad 0
Quad 0
Quad 0
Pair 1
Pair 1
Pair 0
Pair 0
10000000 - 1fffffff
10000000 - 1fffffff
00000000 - 0fffffff
00000000 - 0fffffff
00000000 - 1fffffff
00000000 - 1fffffff
00000000 - 1fffffff
00000000 - 1fffffff

Notes

  1. Two DIMMs form a pair. Two pair of DIMMs form a quad.
  2. The minimum requirement is two DIMMs in any adjacent pair.
  3. DIMMs can be installed in any order of pairs.
  4. Interleaving requires a fully populated quad.
  5. Each quad addresses up to 512MB of memory.

References

Ultra 30 Service Manual, 802-7719.
