TurboZX

24-Bit Color Frame Buffer

SS10 / SS10SX / SS20

Option 1096

501-2503 501-2711 501-2502
2 Board Set
w/o 340-2349		 Upper Board Lower Board

501-2503 Rear View

501-2503 Front View without Backpanel

501-2503 Front View with Backpanel

501-2503 with Backpanel and Upper Backpanel 340-2349

SS20 Cooling

Systems manufactured prior to May 1995 require Left Vent 330-1661-02 and Right Vent 540-2548-02.

Side View
330-1661-02 and 540-2548-02
Side View
330-1661-01 and 540-2548-01

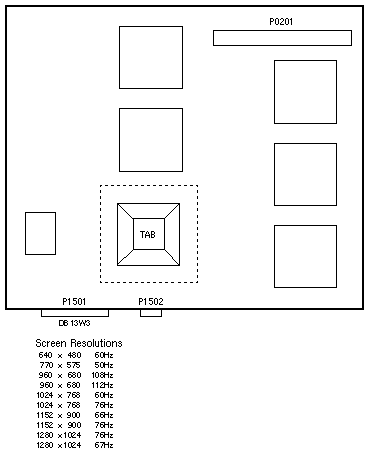

TurboZX Upper Board

501-2711

Bottom Side

UNIX ID: /dev/leo0

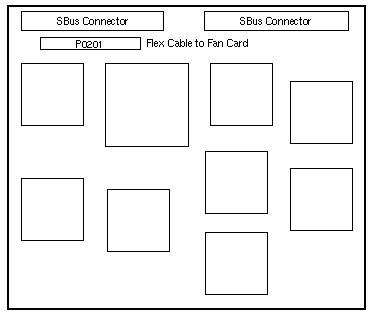

TurboZX Lower Board

501-2502

Bottom Side

Notes

  1. Solaris 2.3 requires Patch 101284-12.
  2. Solaris 2.4 requires Patch 101921.
  3. Solaris 2.4 with hyperSPARC requires Patch 101945.
  4. The final software release is Solaris 2.6.
  5. TurboZX was announced in May 1995 and discontinued in Nov 1995.
  6. TurboZX uses the /opt/SUNWleo device driver.
  7. Standoff 240-2716 and Screw 240-2102 fasten the boards together.
  8. The SS10 and SS20 requires two 501-2840 Fan Cards.

Screen Resolution

  1. The variable monitor_type is defined in /etc/init.d/leoconfig.
  2. Make temporary changes to the screen resolution with the following command: /etc/opt/SUNWleo/bin/leoconfig -M monitor_type
  3. Make permanent changes to the screen resolution by removing the comment symbol # from the desired setting in /etc/init.

Reference

TurboZX Installation Manual, 800-7829.

TurboZX Fan Card

501-2840


Flex Cable 530-2165


Notes

  1. The SS10 and SS20 require two 501-2840 Fan Cards.
  2. Flex Cable 530-2165 provides additional power to the TurboZX.

Reference

TurboZX Installation Manual, 800-7829.
