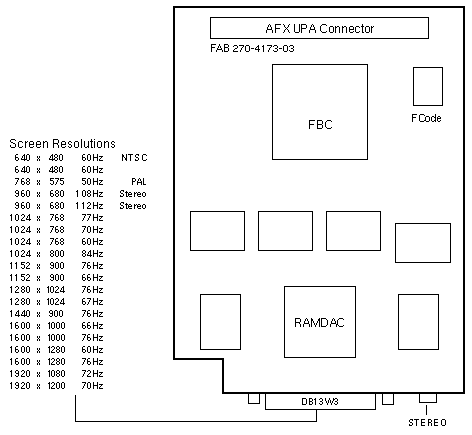

Creator3D Series 3 (FFB2+)

24-Bit Color Frame Buffer

A14 / E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Options 3661 / 3671

501-4790


UNIX ID: /dev/ffb0

Notes

  1. The minimum OS is Solaris 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. The E3000-E6000 CPU/Memory Board requires OBP 3.2 Version 9.
  3. The FFB2+ is not compatible with 300MHz Module 501-4196.
  4. The FFB2+ is not compatible with 300MHz Module <=501-4849-02.

References

  1. ffbconfig (1M) and ffb (7D) manual pages.
  2. Creator Installation Guide, 802-7731.

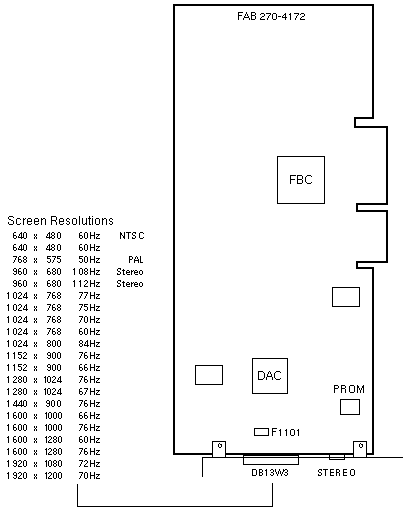

Creator3D Series 3 (FFB2+)

24-Bit Color Frame Buffer

A16 / A22 / A23 / A28 / A29

Options 3663 / 3670

501-4788 501-5690

Energy Star


UNIX ID: /dev/ffb0

Notes

  1. The minimum OS is Solaris 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  2. The FFB2+ is not compatible with 300MHz Module 501-4196.
  3. The FFB2+ is not compatible with 300MHz Module <=501-4849-02.
  4. The 300MHz Module is not compatible with FFB2+ <=501-4788-02.

References

  1. ffbconfig (1M) and ffb (7D) manual pages.
  2. Creator Installation Guide, 802-7731.
