StorEdge Network FC Switch-8

Codenames: Cobra (8-port) Mamba (16-port) Python (Phase 3)

Options 6744 / 6746

370-4035	540-4372
Ancor SANbox-8	FRU Assembly

Front View

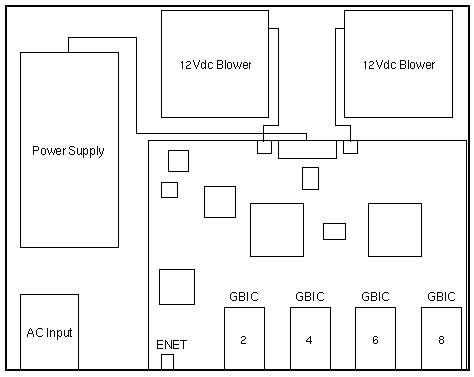

Top View with Cover Removed

Parts Breakdown

PART #	DESCRIPTION
595-5358 595-5560 180-1932 540-4189 540-4372 340-5773 370-4035	Network FC Switch-8 Option UG-X6744A Network FC Switch-8 Option X6746A AC Power Cord 3U Vented Panel Switch Assembly/FRU Slide Rail Ancor SANbox-8 Switch

LC-SC Fibre Cables

OPTION	FRU PART #	DESCRIPTION
X9721A	537-1036	0.4 Meter LC-SC Fibre Channel Cable
X9722A	537-1035	2 Meter LC-SC Fibre Channel Cable
X9723A	537-1033	5 Meter LC-SC Fibre Channel Cable
X9724A	537-1034	15 Meter LC-SC Fibre Channel Cable

SC-SC Fibre Cables

OPTION	FRU PART #	DESCRIPTION
X973A	537-1004	2 Meter SC-SC Fibre Channel Cable
X978A	537-1006	15 Meter SC-SC Fibre Channel Cable, 50/125 Multimode
n/a	537-1014	15 Meter SC-SC Fibre Channel Cable, 9/125 Singlemode
X9715A	537-1020	5 Meter SC-SC Fibre Channel Cable
X9720A	130-4723	SC-SC Fibre Channel Cable Coupler

Notes

1. All switches in the SAN must contain matching firmware versions.
2. 370-4035-01 has f/w 3.02.67, -02 has 3.03.51, and -03 has 3.04.60.
3. X6731A is the option for the suppported GBIC. GBICs are not included with the switch.

References

1. Network FC Switch-8 Installation and Configuration Guide, 806-2877.
2. Network FC Switch-8 Troubleshooting Guide, 806-5514.
3. Network FC Switch FRU Installation, 816-1290.
4. Brocade SAN Configuration Descriptions.
5. SOC+XT SAN Limited Program Overview and Purpose.
