StorEdge Network FC Switch-16

Codenames:
Mamba (16-port)
Python (Phase 3)

Option SG-XSW16-32P

370-4276 540-4751
Ancor SANbox-16 FRU Assembly

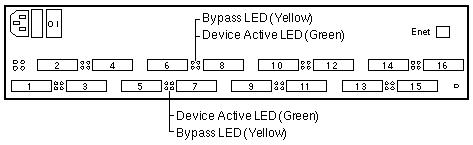

Front View

Top View with Cover Removed

Parts Breakdown

PART # DESCRIPTION
595-5800
180-1949
340-6584
540-4558
540-4751
340-6581
340-6582
340-6583
370-4276
Network FC Switch-16 Option SG-XSW16-32P
AC Y Power Cord (Option X319YA)
2U-3U Mounting Rail
2U Vented Panel
Switch Assembly/FRU
Left Bracket
Right Bracket
Rear Bracket
Ancor SANbox-16 Switch

LC-SC Fibre Cables

OPTION FRU PART # DESCRIPTION
X9721A 537-1036 0.4 Meter LC-SC Fibre Channel Cable
X9722A 537-1035 2 Meter LC-SC Fibre Channel Cable
X9723A 537-1033 5 Meter LC-SC Fibre Channel Cable
X9724A 537-1034 15 Meter LC-SC Fibre Channel Cable

SC-SC Fibre Cables

OPTION FRU PART # DESCRIPTION
X973A 537-1004 2 Meter SC-SC Fibre Channel Cable
X978A 537-1006 15 Meter SC-SC Fibre Channel Cable, 50/125 Multimode
n/a 537-1014 15 Meter SC-SC Fibre Channel Cable, 9/125 Singlemode
X9715A 537-1020 5 Meter SC-SC Fibre Channel Cable
X9720A 130-4723 SC-SC Fibre Channel Cable Coupler

Notes

  1. All switches in the SAN must contain matching firmware versions.
  2. Switch 370-4276-01 has f/w 3.03.51, and -02 has 3.04.60.
  3. X6731A is the option for the suppported GBIC. GBICs are not included with the switch.

References

  1. Network FC Switch-16 Installation and Configuration Guide, 806-6922.
  2. Network FC Switch-16 Troubleshooting Guide, 806-6923.
  3. Network FC Switch FRU Installation, 816-1290.
  4. Brocade SAN Configuration Descriptions.
  5. SOC+XT SAN Limited Program Overview and Purpose.
