| CODE |
PART # |
DESCRIPTION |
-
-

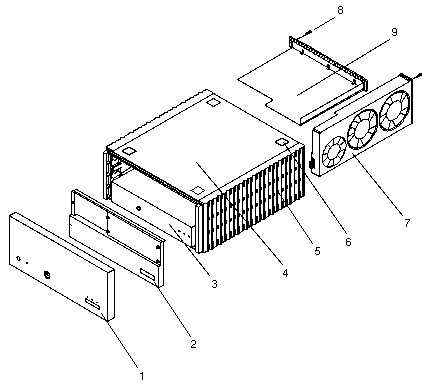

1
2
3
4
5
6
7
-
-
-
NS
NS |
540-2273
340-2684
540-2477
340-2943
300-1103
330-1469
330-1470
330-1589
370-1547
None
None
None
240-2083
340-1590 |
Chassis Assembly
 Chassis
Front Bezel Assembly
Front EMI Cover
650 Watt Power Supply
Top and Bottom Cover
Side Cover
Cover Plug
Fan Tray Assembly, +12VDC, 4 Amps
 6" Fans, 60 CFM @ 1850 RPM each
6" Fans, 80 CFM @ 2950 RPM each
4.7" Fan, 45 CFM @ 2300 RPM
M6 × 14 mm Screw, Foot
Foot |
8
9
9
-
-
9
-
- |
240-1530
540-2388
501-2242
501-2066
540-2403
501-2589
501-2588
540-2568 |
M3 × 6 mm Screw
Empty Slot Filler Panel
2.1GB SCSI Disk Card with 4× 535MB Disks
SCSI Disk Card FRU without Disks
535MB Disk Drive FRU
Wide SCSI Disk Card FRU with 4× 1.05GB Disks
Wide SCSI Card FRU without Disks
1.05GB Disk Drive FRU |
| NS |
150-1785 |
Single-Ended Active Terminator, HD50 |
| NS |
150-2267 |
Single-Ended Forced Perfect Terminator, HD68 |
| NS |
260-6233 |
Sun Logo |
| NS |
260-7326 |
disktower 1000 Nameplate |
|
801-5116 |
disktower 1000 System Service Manual |
