StorEdge MultiPack

DSK020A-18G DSK040A-36G DSK060A-54G
2 9.1GB Disks
7200 RPM
4 9.1GB Disks
7200 RPM
6 9.1GB Disks
7200 RPM
DSK020C-18G DSK040C-36G DSK060C-54G
2 9.1GB Disks
10000 RPM
4 9.1GB Disks
10000 RPM
6 9.1GB Disks
10000 RPM

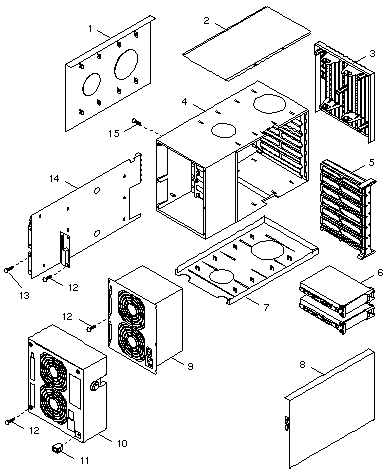

CODE PART # DESCRIPTION
1 330-1957 Side Cover
2 330-1956 Top Cover
3 540-2798 Front Cover Assembly
4 540-3397 Chassis Assembly
5 540-3399 Spacer Assembly
6
-
540-2951
370-2369
9.1GB 7200 RPM Disk Drive Assembly/FRU
9.1GB Disk Drive, Seagate ST19171WC
6
-
-
-
-
540-3704
370-3404
370-3413
370-3595
390-0004
9.1GB 7200 RPM Disk Drive Assembly/FRU
9.1GB Disk Drive, IBM DDRS-39130
9.1GB Disk Drive, Fujitsu MAB3091SC
9.1GB Disk Drive, Seagate ST39173WC
9.1GB Disk Drive, Fujitsu MAE3091LC
6
-
-
540-3881
370-3649
390-0005
9.1GB 10000 RPM Disk Drive Assembly/FRU
9.1GB Disk Drive, Seagate ST39102LC
9.1GB Disk Drive, Fujitsu MAG3091LC
7
8
540-3398
540-3401
Base Assembly with UltraSCSI Silkscreen
Door Assembly with UltraSCSI Silkscreen
9 300-1330 185 Watt Power Supply
10
11
12
13
14
15
540-2788
540-2789
240-2283
240-2180
501-4747
240-2282
Rear Cover Assembly
Lockbox
M3 × 8 mm Screw
#4-40 Jack Screw
6-Slot Ultra SCSI Backplane
M3 × 14 mm Screw
NS 150-2267 Forced Perfect Terminator, HD68
NS 330-1966 Key
NS 530-2383 External SCSI Cable, HD68 to HD68, 80 cm
NS 540-3423 Cover Kit/FRU with Front, Top, Side, and Door

805-1667
805-3954
SPARCstorage MultiPack Service Manual
StorEdge MultiPack User's Guide
