Desktop Storage Module

571
1.3GB Disk

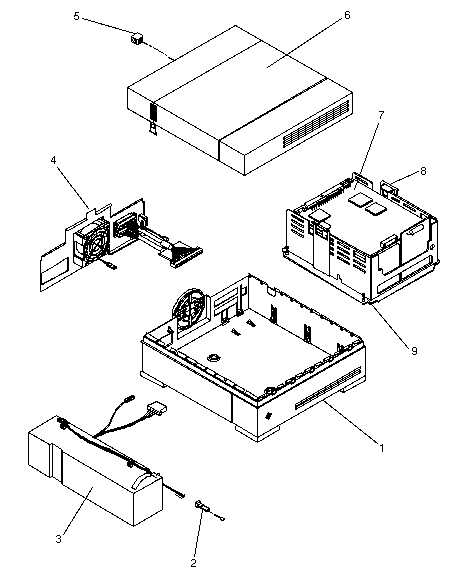

CODE PART # DESCRIPTION
1 540-2139 Base Assembly, Disk Drive Option
2 530-1522 Power Indicator LED Cable
3 300-1080 60 Watt Power Supply
4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
540-2145
150-1557
150-2049
340-2506
501-1468
530-1790
530-2117
530-1844
530-1844
530-1844
530-1844
530-1844
530-2125
540-2142
540-2142
I/O Bracket Assembly
Address Select Switch (obsolete)
Address Select Switch
I/O Bracket
I/O PCB and Cable Assembly (obsolete)
Address Select Switch Cable (obsolete)
Address Select Switch Cable
Internal SCSI Cable, -01 Rev 50 = 300 mm
Internal SCSI Cable, -01 Rev 51 = 250 mm
Internal SCSI Cable, -02 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev A = 260 mm
Internal SCSI Cable, 308 mm
DC Fan Assembly, 17 CFM (obsolete)
DC Fan Assembly, 14 CFM
5 540-1982 Top Cover Lockbox Assembly
6 540-2141 Top Cover Assembly, Disk Drive Option
7 370-1377 1.3GB Disk Drive, Seagate 976002-012, PA4E1
8 340-2571 Peripheral Removal Handle (obsolete)
8 540-2263 Peripheral Removal Handle
9 340-2507 Disk Drive Mounting Bracket
NS 150-1785 Single-Ended Active Terminator, HD50
NS 240-1141 #6-32 × 1/4" Disk Drive Mounting Screw
NS 240-1912 #6-32 × 1/4" Disk Drive Mounting Screw (obs)
NS 530-1792 External SCSI Cable, HD50 to DD-50SA, 2.0M
NS 530-1793 External SCSI Cable, HD50 to HD50, 80 cm
NS 530-1829 External SCSI Cable, HD50 to DD-50SA, 1.0M
NS 530-1836 External SCSI Cable, HD50 to HD50, 2.0M
NS 530-1852 External SCSI Cable, HD50 to HD50, 4.0M

800-6219
800-7236
Desktop Storage Module Service Manual
Desktop Storage Module Service Manual
