Seagate ST41600N (1.3GB)

5 1/4" 5400 RPM Single Ended SCSI

SS630MP / SS670MP
Option 571

370-1377
3 1/4" Height
976002-012
Elite-1

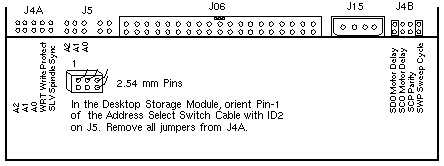

Top View

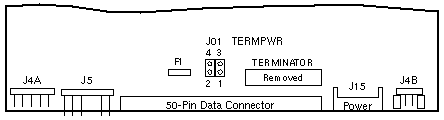

End View

Notes

  1. The minimum operating system is SunOS 4.1.1.
  2. SunOS 4.1.1 Sun-4c requires the 1.3GB Disk Drive Enhancement (esp.o, sd.o, and format.dat).
  3. SunOS 4.1.1 Rev B Sun-4c requires the 1.3GB Disk Drive Enhancement (esp.o and sd.o).
  4. SunOS 4.1.1 Sun-4 requires the 1.3GB Disk Drive Enhancement (format.dat).
  5. The 1.3GB Disk Drive is not supported inside Sun 12-Slot Office Pedestals that use SCSI Interface PCBs 501-1493 and 501-1496.
  6. The 1.3GB Disk Drive is not supported inside SCSI Peripheral Trays that use SCSI Interface PCB 501-1496.

References

  1. Desktop Storage Module Service Manual, 800-6219.
  2. Desktop Storage Module Service Manual, 800-7236.
  3. Sun SCSI Expansion Pedestal Service Manual, 800-6402.
  4. Sun SCSI Expansion Pedestal Service Manual, 800-7285.
  5. 12-Slot Office Pedestal with Single Peripheral Tray, 800-6497.
