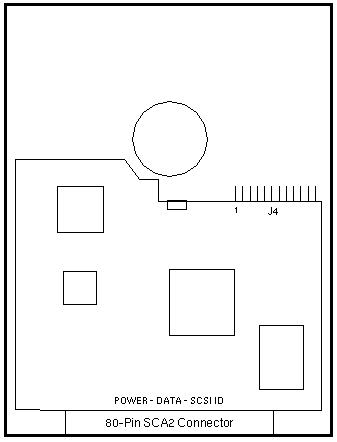

IBM DDRS-34560 (4.2GB)

3 1/2" 7200 RPM Single Ended Ultra-1 SCSI

SS5 / SS20 / A12 / A14 / A16 / A20 / A23 / A25 / E150
Netra t 1100 / E3000 / StorEdge MultiPack / StorEdge UniPack

Options 5162 / 5206 / 5207 / 5214 / 5514
5515 / 5516 / 5911 / 6517 / 6518 / 6519

370-3403 370-3925
1" Height
Ultrastar 9ES/Draco 4
Boot Disk
A7000 FRU
540-2937 540-2938 540-3988
SSA FRU
w Bkt 540-2764
Spud Bracket FRU
w 1" Bkt 540-3024
SS5/SS20 FRU
w Bkt 540-2570

Notes

  1. Support for 4.2GB Disks in the SS5 was announced in September 1998.
  2. Qualification of 4.2GB Disks in the SS20 was completed in November 1998.
  3. The 4.2GB Disk was not qualified in Ultra 1 Models 140 or 170 (A11).
  4. Solaris 1.x supports a maximum disk drive size of 2.1GB.
  5. Label the 4.2GB Disk Drive as Sun2.1G to use the drive on Solaris 1.x.
  6. A root partition >2GB is not supported by Sun-4c, 4m, or 4d systems.

References

  1. 4.2 Gbyte 7200 rpm Disk Drive Specifications, 802-7744.
  2. Disk Drive Product Notes for Solaris 1.x, 805-7623.
  3. BugID 4035259 filed against root partition >2GB.
