Zytec 300-1359
605 Watt Power Supply
Ultra 450 / Enterprise 450
Option 9682
| 300-1359 |
| AC Input Power Supply |

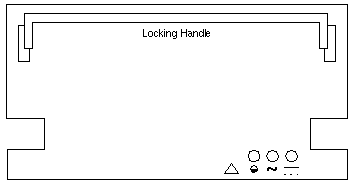

| Front View |
 |
|
| Rear View |
 |
AC Input
- 100-240 VAC
- 47-63Hz
- 8A
DC Output
| +3.3V |
+5.0V |
+12.0V |
-12.0V |
+5.0V Standby |
| 47.0A |
64.0A |
20.0A |
1.0A |
2.4A |
System Codenames
| System |
Codename |
| Ultra 450 |
Tazmo |
| Enterprise 450 |
Tazmax |
Note
- A memory latch remembers the power supplies last power On/Off state. When
a power supply that was Off is installed in a system that is On, the supply will
remain Off. To turn on the power supply, rotate the front panel keyswitch from
the Power-On position to the Diagnostic position, then back to the Power-On
position, or press the keyboard Power-On key.
|
