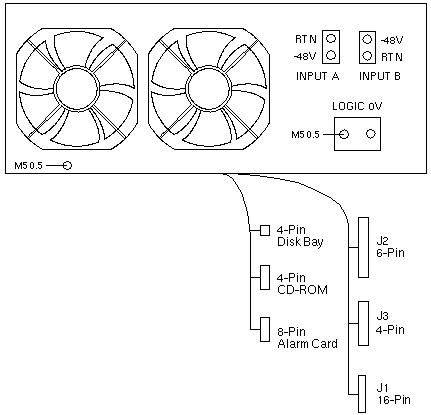

Switching Power Inc Sun-450
350 Watt Power Supply

Netra t 1100 / Netra t 1120

300-1355
DC Input Power Supply
AMP connectors
Used Before 5/99

J1 to System Board J2901

PIN FUNCTION
PIN FUNCTION
1 +3.3 -Sense 9 Off
2 +3.3 +Sense 10 On
3 +5.0 -Sense 11 -12V
4 +5.0 -Sense 12 POR
5 +3.0 -Sense 13 +12V Return
6 +3.0 +Sense 14 +12V
7 +3.0 OVP Program 15 +12 Return
8 +3 +V Program 16 +12

J3 to System Board J2902

PIN COLOR FUNCTION
1 Black +5.0 Return
2 Red +5.0
3 Black +3.0
4 Blue +3.0 Return

J2 to System Board J2903

PIN COLOR FUNCTION
1 2 3 Black +3.3 Return
4 5 6 Yellow +3.3

DC Input

-48VDC
15A

DC Output

V1 V2 V3 V4 V5
+3.3V +5.0V +12.0V -12.0V -2.5V
50.0A 35.0A 6.0A 1.0A 28.0A

Notes

  1. Three banks of memory can be installed in the Ultra 60 System Board if the power supply is <=300-1355-03.
  2. Four banks of memory can be installed in the Ultra 60 System Board if the power supply is >=300-1355-04.
  3. AMP connectors require two #14AWG wires to the circuit breaker.

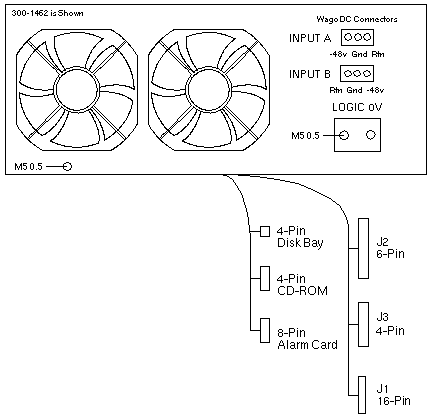

Artesyn EP071332
350 Watt Power Supply

Netra t 1120

300-1405 300-1462
Type D119
DC Input Power Supply
AMP connectors
Used From 5/99 to 11/99
Type D119
DC Input Power Supply
Wago connectors
Used After 11/99

J1 to System Board J2901

PIN FUNCTION
PIN FUNCTION
1 +3.3 -Sense 9 Off
2 +3.3 +Sense 10 On
3 +5.0 -Sense 11 -12V
4 +5.0 -Sense 12 POR
5 +3.0 -Sense 13 +12V Return
6 +3.0 +Sense 14 +12V
7 +3.0 OVP Program 15 +12 Return
8 +3 +V Program 16 +12

J3 to System Board J2902

PIN COLOR FUNCTION
1 Black +5.0 Return
2 Red +5.0
3 Black +3.0
4 Blue +3.0 Return

J2 to System Board J2903

PIN COLOR FUNCTION
1 2 3 Black +3.3 Return
4 5 6 Yellow +3.3

DC Input

-48VDC
15A

DC Output

V1 V2 V3 V4 V5
+3.3V +5.0V +12.0V -12.0V -2.5V
50.0A 35.0A 6.0A 1.0A 28.0A

Netra t 1120 Codename: Lightweight 2

Notes

  1. Four banks of memory can be installed in the Ultra 60 System Board if the power supply is 300-1405 or 300-1462.
  2. The 300-1405 and 300-1462 are not qualified for use in the Netra t 1100.
  3. AMP connectors require two #14AWG wires to the circuit breaker.
  4. Wago connectors require three #12AWG wires to the circuit breaker.
