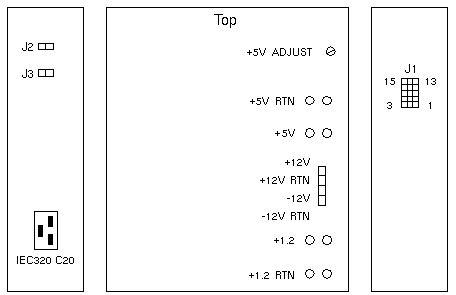

Fuji 300-1281
2410 Watt Power Supply

SPARCcenter 2000 / SPARCcenter 2000E

300-1281
AC Input Power Supply

J1
PIN COLOR VOLTAGE
1 Black PF+
2 Red PF-
3 N/C None
4 Orange +24
5 Or/Blk PCM Fail
6 White +24 Rtn
7 Green Remote+
8 Gr/Blk None
9 Blue Remote-
10 Blk/Wht 5 +Sense
11 Rd/Wht 5 -Sense
12 Gr/Wht 5 Margin
13 Blu/Wht 1.2 +Sense
14 Wht/Blk 1.2 -Sense
15 Rd/Blk 1.2 Margin
   J2 to Fan Tray
PIN COLOR VOLTAGE
1 Orange +24
2 Black +24 Rtn

J3 to AC Distribution J3
PIN COLOR VOLTAGE
1 Red +24
2 Black +24 Rtn

DC Output
+5V +1.2V +12V -12V +24V
340A 180A 14A 2A 9A

Note

Only one 300-1073, 300-1258, or 300-1286 Power Supply is supported. Two 300-1281 Power Supplies are supported in Chassis 599-2027 and 599-2031. Use Sense Cable 530-2210 in Chassis 599-1821.
