Fuji 300-1073
2410 Watt Power Supply

SPARCcenter 2000 / SPARCcenter 2000E

300-1073

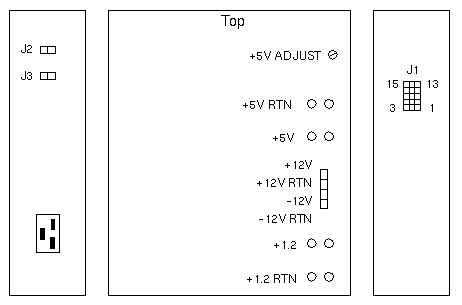

AC Input Power Supply

J1
PIN COLOR VOLTAGE
1 Black PF+
2 Red PF-
3 N/C None
4 Orange +24
5 Or/Blk N/C
6 White +24 Rtn
7 Green Remote+
8 Gr/Blk None
9 Blue Remote-
10 Blk/Wht 5 +Sense
11 Rd/Wht 5 -Sense
12 Gr/Wht 5 Margin
13 Blu/Wht 1.2 +Sense
14 Wht/Blk 1.2 -Sense
15 Rd/Blk 1.2 Margin

J2 to Fan Tray
PIN COLOR VOLTAGE
1 Orange +24
2 Black +24 Rtn
J3 to AC Distribution J3
PIN COLOR VOLTAGE
1 Red +24
2 Black +24 Rtn
DC Output
+5V +1.2V +12V -12V +24V
340A 180A 14A 2A 9A

Note

Only one 300-1073 Power Supply is supported. The 300-1073 Power Supply was not used in factory configured SC2000E systems.
