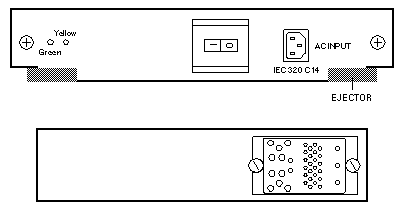

FDK PEX705-40
Danish 184 Watt Power Supply

AC Input

VOLTAGE	CURRENT	FREQUENCY
100 - 240V	12A	47 - 63HZ

DC Output

+5V	+5V	+12V	+12V	MAXIMUM CONTINUOUS
15A	0A	8.5A	1.5A	195 Watts

Notes

1. Use AC power cord 530-2301, Option X389L.
2. Power cord 530-2301 requires a 16A IEC309 receptacle.
3. One 300-1317 Power Supply is supported per system.
4. Use 300-1301 as the redundant Peripheral Power Supply.
5. Use Filler Panel 540-2593 when 300-1301 is not installed.
6. Fan Tray 540-2757 or 300 Watt Power/Cooling Module 300-1260 provides cooling for the 184 Watt Power Supply.
7. The 184 Watt Power Supply provides the following functions:

   AC Input power

   +5Vdc and +12Vdc peripheral tray power

   +5Vdc and +12Vdc drive precharge (non redundant)

   +3.3Vdc and +5Vdc system precharge (non redundant)

   +5Vdc redundant system power

   +12Vdc redundant power for PCM fans

   +12Vdc redundant power for E3000 Auxiliary Fan Module

   +5Vdc auxilliary power for Clock Board remote console serial port
