FDK PEX668-31
150 Watt Power Supply

SS4 / SS5 / SS20

300-1215 300-1279

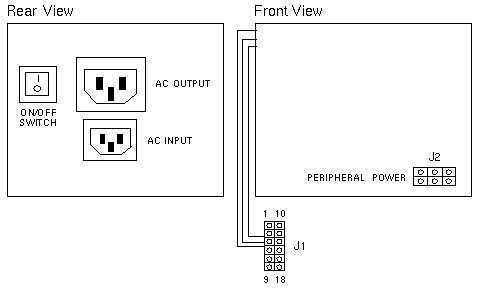

AC Input Power Supply AC Input Power Supply

J1
1 2 3 4 5 6 7 8 9 10-15 16 17 18
Blu Brn Red Red Red Red Red Red Gry Blk Grn Vio Yel
+12 -12 +5 +5 +5 +5 +5 +5 Poff GND Mon Fan Pon

J2
1 2 3 4 5 6
Red Blk Blk Red Blk Blu
+5 GND GND +5 GND +12

DC Output
+5V +12V -12V
25A 2.3A 0.25A

Note

  1. The SS20 requires the 300-1215-03 or 300-1279-01 power supply.
  2. Part number 300-1279 is used in SS4 1.05GB disk drive Server configurations because the 150 Watt power supply supports the power state memory feature. SS4 Workstation configurations, regardless of disk capacity, use 50 Watt power supply 300-1257.
