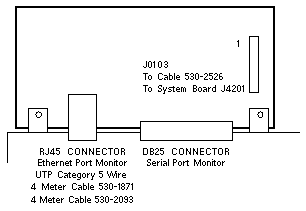

Remote System Control (RSC)

Notes

1. The minimum operating system is Solaris 2.6 Hardware: 5/98.
2. The RSC Flash Prom is on the E250 System Board at U4401.
3. Cable 530-2526 is included with 501-4818 and F501-4818.

Power Distribution Board Notes

1. If the RSC issues a power-off when the system is Off, the system will be latched Off. This is fixed on PDB 501-4683-05 Rev 51.
2. The RSC may not be able to read the keyswitch position when DC power is Off. This is fixed on PDB 501-4683-05 Rev 53.

References

1. Enterprise 250 Owners Guide, 805-5160.
2. Enterprise 250 ShowMe How, 724-2794.
3. Remote System Control Installation Guide, 805-5680.
4. Remote System Control User's Guide, 805-3722.
5. Remote System Control User's Guide, 806-3986.
