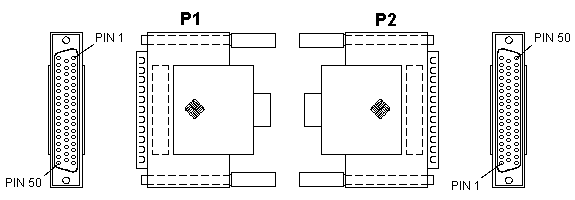

SCSI: DD-50SA to DD-50SA

530-1249, 530-1250 & 530-1365

P1
DD-50SA
WIRE COLOR P2
DD-50SA
1 TAN/YELLOW 1
34 YELLOW/TAN 34
18 PINK/ORANGE 18
2 ORANGE/PINK 2
35 BROWN/VIOLET 35
19 VIOLET/BROWN 19
3 BROWN/BLUE 3
36 BLUE/BROWN 36
20 BROWN/YELLOW 20
4 YELLOW/BROWN 4
37 BROWN/ORANGE 37
21 ORANGE/BROWN 21
5 TAN/GRAY 5
38 GRAY/TAN 38
22 TAN/VIOLET 22
6 VIOLET/TAN 6
39 WHITE/GRAY 39
23 GRAY/WHITE 23
7 TAN/BLUE 7
40 BLUE/TAN 40
24 WHITE/PINK 24
8 PINK/WHITE 8
41 BROWN/GRAY 41
25 GRAY/BROWN 25
9 WHITE/VIOLET 9

P1
DD-50SA
WIRE COLOR P2
DD-50SA
42 VIOLET/WHITE 42
26 BROWN/GREEN 26
10 GREEN/BROWN 10
43 BROWN/PINK 43
27 PINK/BROWN 27
11 WHITE/BLUE 11
44 BLUE/WHITE 44
28 WHITE/GREEN 28
12 GREEN/WHITE 12
45 TAN/BROWN 45
29 BROWN/TAN 29
13 WHITE/TAN 13
46 TAN/WHITE 46
30 TAN/GREEN 30
14 GREEN/TAN 14
47 WHITE/ORANGE 47
31 ORANGE/WHITE 31
15 TAN/ORANGE 15
48 ORANGE/TAN 48
32 WHITE/YELLOW 32
16 YELLOW/WHITE 16
49 WHITE/BROWN 49
33 BROWN/WHITE 33
17 TAN/PINK 17
50 PINK/TAN 50
