300MHz UltraSPARC II Module

Ultra 2 / Ultra 30 / Enterprise 450 / Netra t 1120 / Netra t 1125

Options 1191 / 2240

501-4196
2MB Cache Blackbird

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Ultra 2 OBP 3.7v0 and CPU >=501-3132-07 is required.
  3. UPA Terminator 501-4843 is required if only one module is installed on Ultra 2 CPU <=501-3132-12.
  4. Jumper J2301 on Ultra 2 system board 501-3132 may need to be adjusted for the 300MHz module.
  5. The 501-4196 is not compatible with the Ultra 60 (A23).
  6. The 501-4196 was not shipped in A20, A23, or A26 systems.
  7. Mixing module speeds is not supported.
  8. The Enterprise 450 requires DC-DC Converter 300-1322.
  9. Option X2240A includes a Module and DC-DC Converter 300-1322.

References

  1. Sun Ultra 2 Module Upgrade, 805-0936.
  2. Sun Ultra 2 UltraSPARC II Module X-Option, 805-0937.
  3. Ultra Enterprise 450 UltraSPARC II Module X-Option, 805-1704.

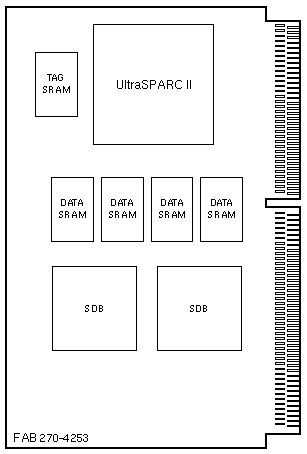

300MHz UltraSPARC II Module

Ultra 2 / Ultra 30 / Ultra 60 / Ultra 450 / Enterprise 250
Enterprise 450 / Netra t 1120 / Netra t 1125 / Netra ft 1800

Options 1191 / 2240

501-4849
2MB Cache Blackbird

Notes

  1. The minimum operating system is Solaris 2.5.1.
  2. Ultra 2 OBP 3.7v0 and CPU >=501-3132-07 is required.
  3. UPA Terminator 501-4843 is required if only one module is installed on Ultra 2 CPU <=501-3132-12.
  4. Jumper J2301 on Ultra 2 system board 501-3132 may need to be adjusted for the 300MHz module.
  5. Modules <=501-4849-02 are not compatible with the Ultra 60.
  6. UltraSPARC II revision 1.1 is not compatible with the Netra ft 1800.
  7. Mixing module speeds is not supported.
  8. The Ultra 450 and Enterprise 450 require DC-DC Converter 300-1322.
  9. Option X2240A includes a Module and DC-DC Converter 300-1322.

References

  1. Sun Ultra 2 Module Upgrade, 805-0936.
  2. Sun Ultra 2 UltraSPARC II Module X-Option, 805-0937.
  3. Ultra Enterprise 450 UltraSPARC II Module X-Option, 805-1704.
