AC Distribution Unit Power Requirements
SC2000 / SC2000E
Operating Range
- Nominal Voltage: 208, 220, 230, or 240 Volts AC
- Operating Voltage: Single Phase 180-264 Volts AC
- Frequency: 48-63 Hz
- Current: 24 A maximum
AC Power Plug
- The 230VAC power plug is a NEMA L6-30P. The 240VAC power plug is a
Blue, 32A, IEC 309, with Ground at the 6-hour position.
AC Power Cord
- The 230VAC Power Sequencer uses a 12 AWG Type SJO flexible cord rated
at 25A when connected to utilization equipment with 2 current carrying
conductors. Refer to Article 400-5 of the US National Electrical Code.

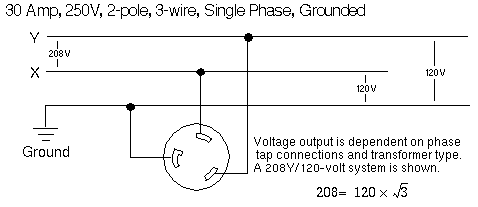

NEMA L6-30R / ANSI C73.75 230 Volt Power Receptacle

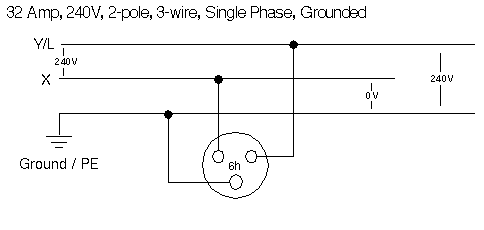

IEC 309 240 Volt Power Receptacle
|
