Fair Share Scheduler
An analysis of workload data can indicate that a particular workload or group of workloads is monopolizing CPU resources. If the workloads are not violating resource constraints on CPU usage, you can modify the allocation policy for CPU time on the system. The fair share scheduling class that is described in this chapter enables you to allocate CPU time that is based on shares. Thus, you avoid allocation that is based on the priority scheme of the timesharing (TS) scheduling class.
A fundamental job of the operating system is to arbitrate which processes obtain access to the system's resources. The process scheduler (also called the dispatcher) is the portion of the kernel that controls allocation of the CPU to processes. The scheduler supports the concept of scheduling classes: each class defines a scheduling policy that is used to schedule processes within the class. The default scheduler in the Solaris operating environment, the TS scheduler, tries to give every process relatively equal access to the available CPUs. However, in some situations you want to specify that certain processes be given more resources than others.
You can use the fair share scheduler (FSS) to control the allocation of available CPU resources among workloads, based on their importance. This importance is expressed by the number of shares of CPU resources that you assign to each workload.
You give each project CPU shares to control the project's entitlement to CPU resources. The FSS guarantees the fair dispersion of CPU resources among projects that is based on allocated shares, independent of the number of processes that are attached to a project. The FSS achieves fairness by reducing a project's entitlement for heavy CPU usage and increasing its entitlement for light usage, in accordance with other projects.
The FSS consists of a kernel scheduling class module and class-specific versions of the dispadmin(1M) and priocntl(1) commands. Project shares that the FSS uses are specified through the project.cpu-shares property in the project(4) database.
CPU Share Definition
The term "share" is used to define a portion of the system's CPU resources that are allocated to a project. The larger the number of CPU shares assigned to a project, the more CPU resources it receives from the fair share scheduler, relative with other projects.
CPU shares are not equivalent to percentages of CPU resources. Shares are used to define the relative importance of workloads in relation to other workloads. When you assign CPU shares to a project, your predominant concern is not how many shares the project has. First, you need to know how many shares the project has in comparison with other projects. Second you need to know how many of those other projects are competing with the project for CPU resources.
CPU Shares and Process State
In the Solaris operating environment, a project workload usually consists of more than one process. From the fair share scheduler perspective, each project workload can be in either an idle state or an active state. A project is considered idle if none of its processes are using any CPU resources. This usually means that such processes are either sleeping (waiting for I/O completion) or stopped. A project is considered active if at least one of its processes is using CPU resources. The sum of shares of all active projects is used in calculating the portion of CPU resources to be assigned to projects.
The following formula shows how the FSS scheduler calculates per-project allocation of CPU resources.
Figure 9-1 FSS Scheduler Share Calculation
When more projects become active, each project's CPU allocation is reduced, but the proportion between the allocations of different projects does not change.
CPU Share Versus Utilization
Share allocation is not the same as utilization. A project that is allocated 50 percent of the CPU resources might average only a 20 percent CPU use. Moreover, shares serve to limit CPU usage only when there is competition from other projects. Regardless of how low a project's allocation is, it always receives 100 percent of the processing power if it is running alone on the system. Available CPU cycles are never wasted. They are distributed between projects.
The allocation of a small share to a busy workload might slow its performance. However, the workload is not prevented from completing its work if the system is not overloaded.
CPU Share Examples
Assume you have a system with two CPUs that are running two parallel CPU-bound workloads called A and B, respectively. Each workload is running as a separate project. The projects have been configured so that project A is assigned SA shares, and project B is assigned SB shares.
On average, under the traditional TS scheduler, each of the workloads that are running on the system would be given the same amount of CPU resources. That distribution would be 50 percent of the system's capacity to each workload.
When run under the control of the FSS scheduler with SA=SB, these projects are also given approximately the same amounts of CPU resources. However, if the projects are given different numbers of shares, their CPU resource allocations are different.
The next three examples illustrate how shares work in different configurations. These examples show that shares are only mathematically accurate for representing the usage if demand meets or exceeds available resources.
Example 1: Two CPU-Bound Processes in Each Project
If A and B have two CPU-bound processes each, and SA = 1 and SB = 3, then the total number of shares is 1 + 3 = 4. In this configuration, given sufficient CPU demand, projects A and B are allocated 25 percent and 75 percent of CPU resources, respectively.
Example 2: No Competition Between Projects
If A and B have only one CPU-bound process each, and SA = 1 and SB = 100, then the total number of shares is 101. Each project cannot use more than one CPU because each project has only one running process. Because no competition exists between projects for CPU resources in this configuration, projects A and B are each allocated 50 percent of all CPU resources. In this configuration, CPU share values are irrelevant. The projects' allocations would be the same (50/50), even if both projects were assigned zero shares.
Example 3: One Project Unable to Run
If A and B have two CPU-bound processes each, and project A is given 1 share and project B is given 0 shares, then project B is not allocated any CPU resources and project A is allocated all CPU resources. Processes in B always runs at system priority 0, so they never obtain the opportunity to run because processes in project A always have higher priorities.
Projects and Users
Projects are the workload containers in the FSS scheduler. Groups of users who are assigned to a project are treated as single controllable blocks. Note that you can create a project with its own number of shares for an individual user.
Users can be members of multiple projects that have different numbers of shares assigned to them. By moving processes from one project to another, processes can be assigned CPU resources in varying amounts.
For more information on the project(4) database and name services, see "project Database".
CPU Shares Configuration
The first task (or process) that is associated with a project is created through the setproject(3PROJECT) library function. The number of CPU shares that are defined as resource control project.cpu-shares in the project database is then passed to the kernel. Projects that do not have the project.cpu-shares resource control defined are assigned one share each.
In the following example, this entry in the /etc/project file sets the number of shares for project x-files to 5:
If the number of CPU shares that are allocated to a project is altered in the database when processes are already running, the number of shares for that project are not modified at that point. The project must be restarted for the change to become effective.
If you want to temporarily change the number of shares that are assigned to a project without altering the project's attributes in the project database, use prctl(1). For example, change the value of a project x-files's project.cpu-shares resource control to 3 while processes that are associated with that project are running:
# prctl -r -n project.cpu-shares -v 3 -i project x-files
Replaces the current value for the named resource control.
Specifies the name of the resource control.
Specifies the value for the resource control.
Specifies the ID type of the next argument.
Specifies the object of the change. In this instance, project x-files is the object.
Project system with project ID 0 includes all system daemons that are started by the boot-time initialization scripts. system can be viewed as a project with an unlimited number of shares. This means that system is always scheduled first, regardless of how many shares have been given to other projects. If you do not want the system project to have unlimited shares, you can specify a number of shares for this project in the project database.
As stated previously, processes that belong to projects with zero shares are always given zero system priority. Projects with one or more shares are running with priorities one and above. Thus, projects with zero shares are only scheduled when CPU resources are available that are not requested by a nonzero share project.
The maximum number of shares that can be assigned to one project is 65535.
FSS and Processor Sets
The FSS can be used in conjunction with processor sets to provide more fine-grained controls over allocations of CPU resources among projects that run on each processor set than would be available with processor sets alone. The FSS scheduler treats processor sets as entirely independent partitions, with each processor set controlled independently as it applies to CPU allocations.
The CPU allocations of projects that run in one processor set are not affected by the CPU shares or activity of projects that run in another processor set because they are not competing for the same resources. Projects only compete with each other if they are running within the same processor set.
The number of shares that are allocated to a project is system wide. Regardless of which processor set it is running on, each portion of a project is given the same amount of shares.
When processor sets are used, project CPU allocations are calculated for active projects that run within each processor set, as shown in the following figure.
Figure 9-2 FSS Scheduler Share Calculation With Processor Sets
Project partitions that run on different processor sets might have different CPU allocations. The CPU allocation for each project partition in a processor set depends only on the allocations of other projects that run on the same processor set.
The performance and availability of applications that run within the boundaries of their processor sets are not affected by the introduction of new processor sets. Nor are the applications affected by changes that are made to the share allocations of projects that run on other processor sets.
Empty processor sets (sets without processors in them) or processor sets without processes bound to them do not have any impact on the FSS scheduler behavior.
FSS and Processor Sets Examples

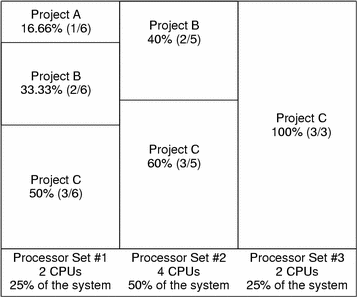

Assume that a server with eight CPUs is running several CPU-bound applications in projects A, B, and C. Project A is allocated one share, project B is allocated two shares, and project C is allocated three shares.
Project A is running only on processor set 1. Project B is running on processor sets 1 and 2. Project C is running on processor sets 1, 2, and 3. Assume that each project has enough processes to utilize all available CPU power. In this situation, there is always competition for CPU resources on each processor set.
The total system-wide project CPU allocations on such a system are as follows:
4% = (1/6 X 2/8)pset1
28% = (2/6 X 2/8)pset1+ (2/5 * 4/8)pset2
67% = (3/6 X 2/8)pset1+ (3/5 X 4/8)pset2+ (3/3 X 2/8)pset3
These percentages do not match the corresponding amounts of CPU shares that are given to projects. However, within each processor set, the per-project CPU allocation ratios are proportional to their respective shares.
On the same system without processor sets, the distribution of CPU resources would be different:
16.66% = (1/6)
33.33% = (2/6)
50% = (3/6)
